MULTISPAN
Ordering codeVPR-35
Protection Relays
VPR-35

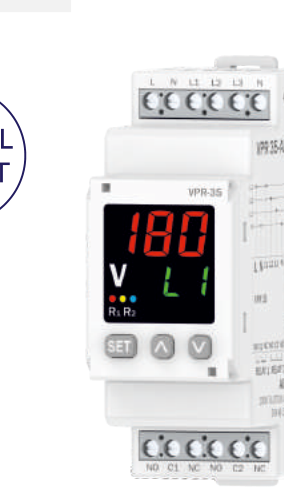

Multispan VPR-35 Voltage Protection Relay
The Multispan VPR-35 is a versatile DIN-rail protection relay supporting 3Ø4W, 3Ø3W and 1Ø2W wiring with two changeover relays and Class 1.0 measurement accuracy.
Also searched as VPR-35, VPR 35. Genuine Multispan VPR-35 — price, datasheet, supplier & distributor support across the UAE & GCC, with worldwide export.
- 3Ø4W / 3Ø3W / 1Ø2W selectable
- 2 x 2C/O relays
- Voltage & frequency protection
- Phase loss, sequence, asymmetry & neutral loss
- Class 1.0 · 100–270 V AC SMPS
Genuine MultispanCE certified
UAE & GCC delivery
Technical Specification
VPR-35 specifications
Model
| Model | VPR-35 |
|---|---|
| Dimension (HxWxD) | 90 x 35 x 61.5 mm |
| Mounting | DIN Rail |
Input
| Signal | 3Ø4 Wire / 3Ø3 Wire / 1Ø2 Wire |
|---|---|
| Voltage | 30 to 300V AC (L-N), 50 to 520V AC (L-L) |
Output
| Relay Output | 2 Relay (NO-C-NC), 230V AC (resistive load) |
|---|
Protection
| Parameters | Over/Under Voltage · Over/Under Frequency · Phase Loss · Phase Sequence · Asymmetry & Neutral Loss |
|---|
Accuracy & Supply
| Accuracy | Class 1.0 |
|---|---|
| Supply | 100 to 270V AC (SMPS) |
Related
More Multispan protection relays
SPP-22 / V22-RYB
SPP-22 / V22-RYB Single Phase Preventor
3-phase single-phasing preventor with R-Y-B indication
Single-phasing prevention
View & quote
SVR-22U
SVR-22U Single Phase Voltage Relay
Single-phase under/over voltage relay, universal supply
Single-phase 160–300 V AC
View & quote
VMR-132
VMR-132 Voltage Protection Relay
96x96 panel-mount 3-phase protection relay with display
96 x 96 mm panel display
View & quote
FAQ
VPR-35 — questions & answers
Is the VPR-35 available in Dubai and the UAE?
Yes — the Multispan VPR-35 is stocked and supplied by Al Misbah Al Sehri in Dubai for delivery across the UAE and GCC. Contact us for current pricing and availability.
Is the VPR-35 a genuine Multispan product?
Yes. We are an authorized Multispan distributor and the VPR-35 is supplied as a genuine, factory-sourced product with manufacturer warranty.
How do I request a quote for the VPR-35?
Use the Request a Quote button on this page, call +971 4 320 3957, or email sales@misbahswitchgear.com quoting the model VPR-35.
What is the price of the VPR-35 and where is its datasheet?
Send us the model VPR-35 for the current price and full datasheet. As an authorized Multispan distributor and supplier we quote genuine stock for the UAE, the GCC and worldwide export.
Ready to order the VPR-35?
Get genuine Multispan VPR-35 with fast UAE & GCC delivery. Send us your requirement for pricing and lead time.
