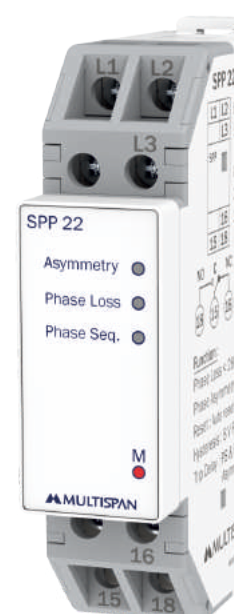

SPP-22 / V22-RYB
SPP-22 / V22-RYB Single Phase Preventor
3-phase single-phasing preventor with R-Y-B indication
Single-phasing prevention
View & quote
MULTISPAN
Ordering codeVPR-22U
Protection Relays
VPR-22U

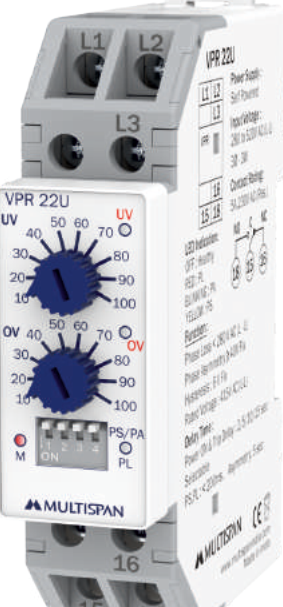

Multispan VPR-22U Voltage Protection Relay
The Multispan VPR-22U is a self-powered 3-phase DIN-rail voltage protection relay guarding against under/over voltage, phase asymmetry, phase sequence and phase loss.
Also searched as VPR-22U, VPR 22U. Genuine Multispan VPR-22U — price, datasheet, supplier & distributor support across the UAE & GCC, with worldwide export.
- 3Ø 3-wire, 280–520 V AC
- Under & over voltage protection
- Phase asymmetry, sequence & loss
- No separate supply required
- DIP-switch delay settings
- 22.5 mm DIN-rail
Genuine MultispanCE certified
UAE & GCC delivery
Technical Specification
VPR-22U specifications
Model
| Model | VPR-22U |
|---|---|
| Dimension (HxWxD) | 90 x 22.5 x 72 mm |
| Mounting | DIN Rail |
Input
| Input Voltage | 280 to 520V AC (L-L), 3Ø3 Wire |
|---|
Output
| Relay Output | 1 Relay, 5A, 230V AC (resistive load) |
|---|
Protection
| Tripping Parameters | Under Voltage · Over Voltage · Phase Asymmetry · Phase Sequence · Phase Loss |
|---|
Supply
| Power Supply | No power supply to be given separately |
|---|---|
| Note | Power ON delay & trip delay set by DIP switch |
Related
More Multispan protection relays

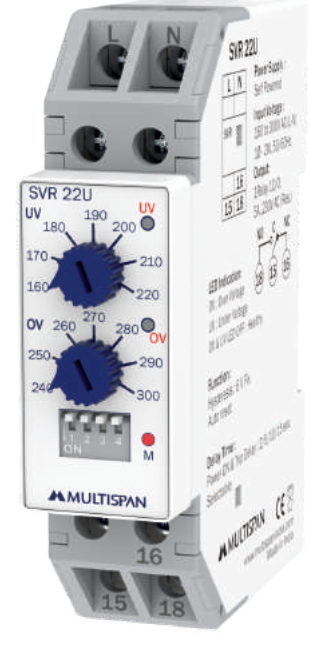

SVR-22U
SVR-22U Single Phase Voltage Relay
Single-phase under/over voltage relay, universal supply
Single-phase 160–300 V AC
View & quote

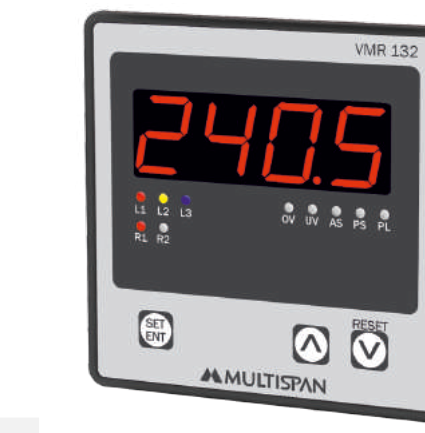

VMR-132
VMR-132 Voltage Protection Relay
96x96 panel-mount 3-phase protection relay with display
96 x 96 mm panel display
View & quote

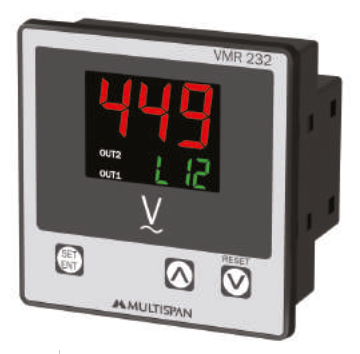

VMR-232
