VPR-33

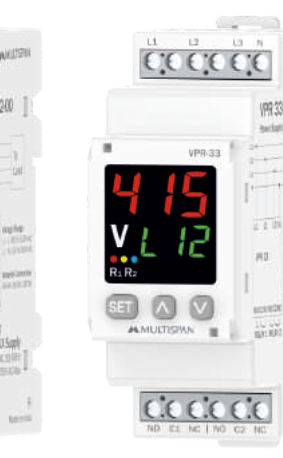

Multispan VPR-33 Voltage Protection Relay
The Multispan VPR-33 is a self-powered DIN-rail voltage protection relay for 3Ø4W and 3Ø3W systems with two changeover relays and Class 1.0 accuracy — no external supply needed.
Also searched as VPR-33, VPR 33. Genuine Multispan VPR-33 — price, datasheet, supplier & distributor support across the UAE & GCC, with worldwide export.
- 3Ø4W / 3Ø3W
- 2 x 2C/O relays
- Voltage protection with display
- Class 1.0 accuracy
- No separate supply required
Genuine MultispanCE certified
UAE & GCC delivery
Technical Specification
VPR-33 specifications
Model
| Model | VPR-33 |
|---|---|
| Dimension (HxWxD) | 90 x 35 x 61.5 mm |
| Mounting | DIN Rail |
Input
| Signal | 3Ø4 Wire / 3Ø3 Wire |
|---|---|
| Voltage | 160 to 300V AC (L-N), 280 to 520V AC (L-L) |
Output
| Relay Output | 2 Relay (NO-C-NC), 230V AC (resistive load) |
|---|
Protection
| Parameters | Over/Under Voltage · Phase Loss · Phase Sequence · Asymmetry |
|---|
Accuracy & Supply
| Accuracy | Class 1.0 |
|---|---|
| Supply | No power supply to be given separately |
