WLC 35

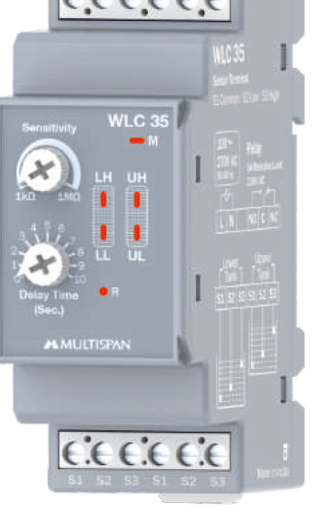

WLC 35 Water Level Controller (Two Tank)
Two-tank electronic water level controller
Two-tank (source & destination) control
View & quote
MULTISPAN
Ordering codeWLC 22
Water Level Controllers
WLC 22

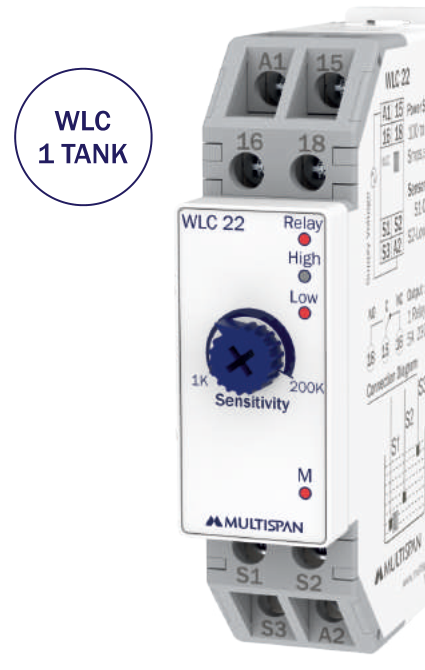

Multispan WLC 22 Water Level Controller (Single Tank)
The Multispan WLC 22 is a single-tank DIN-rail water level controller using three probes with adjustable sensitivity to automate pump filling and prevent dry running.
Also searched as WLC22, WLC 22, WLC-22. Genuine Multispan WLC 22 — price, datasheet, supplier & distributor support across the UAE & GCC, with worldwide export.
- Single-tank control
- 3 probes (common / low / high)
- Sensitivity 1–200 KΩ
- 1C/O 5 A relay
- 100–270 V AC supply
Genuine MultispanCE certified
UAE & GCC delivery
Technical Specification
WLC 22 specifications
Model
| Model | WLC 22 |
|---|---|
| Dimension (HxWxD) | 90 x 22.5 x 72 mm |
| Mounting | DIN Rail |
Input
| Input | 3 Nos probes — S-1: Common, S-2: Low, S-3: High |
|---|---|
| Sensitivity | 1 to 200 KΩ |
| Trip Delay | 0.5 Sec (approx) |
Output
| Relay Output | 1 Relay 1C/O, 5A, 230V AC (resistive load) |
|---|
Supply
| Power Supply | 100 to 270V AC, 50/60 Hz |
|---|
Related
More Multispan water level controllers
FAQ
WLC 22 — questions & answers
Is the WLC 22 available in Dubai and the UAE?
Yes — the Multispan WLC 22 is stocked and supplied by Al Misbah Al Sehri in Dubai for delivery across the UAE and GCC. Contact us for current pricing and availability.
Is the WLC 22 a genuine Multispan product?
Yes. We are an authorized Multispan distributor and the WLC 22 is supplied as a genuine, factory-sourced product with manufacturer warranty.
How do I request a quote for the WLC 22?
Use the Request a Quote button on this page, call +971 4 320 3957, or email sales@misbahswitchgear.com quoting the model WLC 22.
What is the price of the WLC 22 and where is its datasheet?
Send us the model WLC 22 for the current price and full datasheet. As an authorized Multispan distributor and supplier we quote genuine stock for the UAE, the GCC and worldwide export.
Ready to order the WLC 22?
Get genuine Multispan WLC 22 with fast UAE & GCC delivery. Send us your requirement for pricing and lead time.
