CC 548

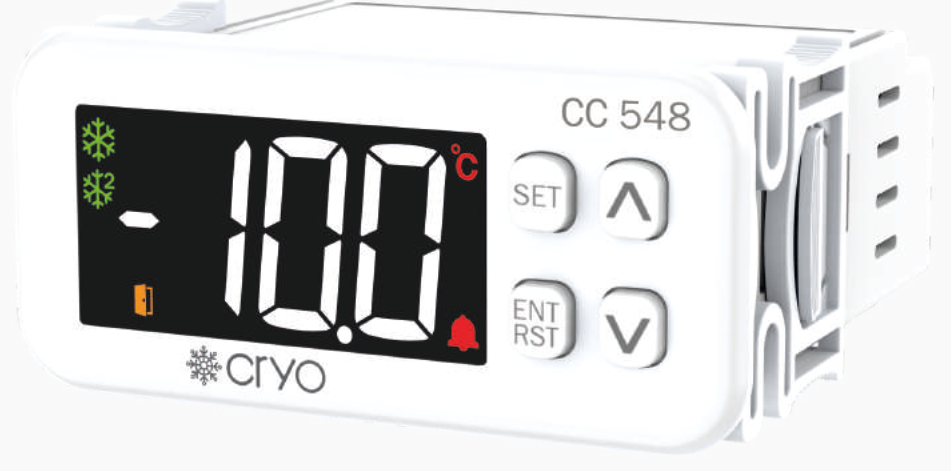

Cryo CC 548 Cooling Controller + Alarm + Door
The Multispan Cryo CC 548 adds a digital door input to a 20 A compressor and 5 A alarm relay — ideal for cold rooms where door-open events must pause cooling and raise alarms.
Also searched as CC548, CC-548, CC 548. Genuine Multispan CC 548 — price, datasheet, supplier & distributor support across the UAE & GCC, with worldwide export.
- 20 A compressor + 5 A alarm relay
- Digital (door) input enable/disable
- Alarm delay 0–99 min
- Alarm on-time 0–999 sec
- NTC −50 to 99.9°C
Genuine MultispanCE certified
UAE & GCC delivery
Technical Specification
CC 548 specifications
Model
| Model | CC-548 |
|---|---|
| Dimension (HxWxD) | 37 x 78 x 70 mm |
| Panel Cutout (HxD) | 30 x 71 mm |
Control
| Control Action | ON-OFF |
|---|---|
| Hysteresis | 0.1 to 20.0°C |
| Offset Adjustment | -9.0 to +9.0°C |
| Compressor Delay Time | 0 to 999 min |
| Alarm Delay Time | 0 to 99 min |
| Alarm On Time | 0 to 999 Sec |
Input / Output
| Sensor | NTC Sensor |
|---|---|
| Resolution | 0.1°C / 1°C |
| Accuracy | ± 1% FSD |
| Digital Input | Enable / Disable (door) |
| Relay Output | 1st relay compressor (NO-C), 2nd relay alarm (NO-C-NC) |
NTC Sensor
| Thermistor Range | -50.0 to 99.9°C / -58.0 to 212°F |
|---|---|
| Nominal Resistance | 10K Ohms |
Auxiliary Supply
| Supply Voltage | 230V AC, 50/60 Hz / 24V DC / 12V DC (factory set) |
|---|---|
| Power Consumption | 3VA Max @230V AC |
Display
| Display | 3 digit, 7-segment RED/WHITE with relay status indication |
|---|
