CC 524

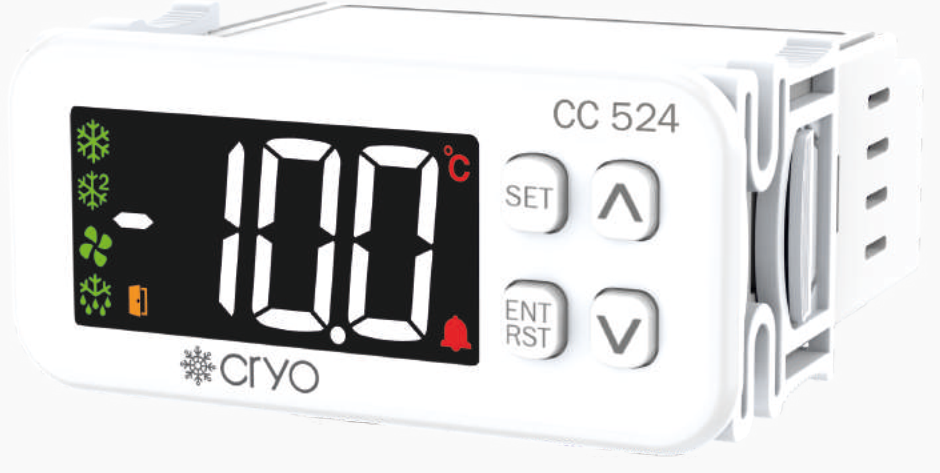

Cryo CC 524 Cooling + Fan + Defrost Controller
The Multispan Cryo CC 524 is a full refrigeration controller managing compressor, evaporator fan and defrost from two NTC sensors — a complete cold-room control solution.
Also searched as CC524, CC 524, CC-524. Genuine Multispan CC 524 — price, datasheet, supplier & distributor support across the UAE & GCC, with worldwide export.
- 3 relays: compressor, fan, defrost
- 2 NTC sensors (room & coil)
- Defrost frequency 1–31 hour
- Fan restart delay 0–20 min
- Digital door input
Genuine MultispanCE certified
UAE & GCC delivery
Technical Specification
CC 524 specifications
Model
| Model | CC-524 |
|---|---|
| Dimension (HxWxD) | 37 x 78 x 70 mm |
| Panel Cutout (HxD) | 30 x 71 mm |
Control
| Control Action | ON-OFF |
|---|---|
| Hysteresis | 0.1 to 20.0°C |
| 1st & 2nd Sensor Offset | -9.0 to +9.0°C |
| Defrost Frequency | 1 to 31 hour |
| Defrost Time | 0 to 99 min |
| Fan Restart Time | 0 to 20 min |
Input / Output
| Sensor | 2 NTC Sensors |
|---|---|
| Resolution | 0.1°C / 1°C |
| Accuracy | ± 1% FSD |
| Digital Input | Enable / Disable |
| Relay Output | 1st compressor (NO-C-NC), 2nd fan (NO-C), 3rd defrost (NO-C) |
NTC Sensor
| Thermistor Range | -50.0 to 99.9°C / -58.0 to 212°F |
|---|---|
| Nominal Resistance | 10K Ohms |
Auxiliary Supply
| Supply Voltage | 230V AC, 50/60 Hz / 24V DC / 12V DC (factory set) |
|---|---|
| Power Consumption | 3VA Max @230V AC |
Display
| Display | 3 digit, 7-segment RED/WHITE with relay status indication |
|---|
