PS24-10A

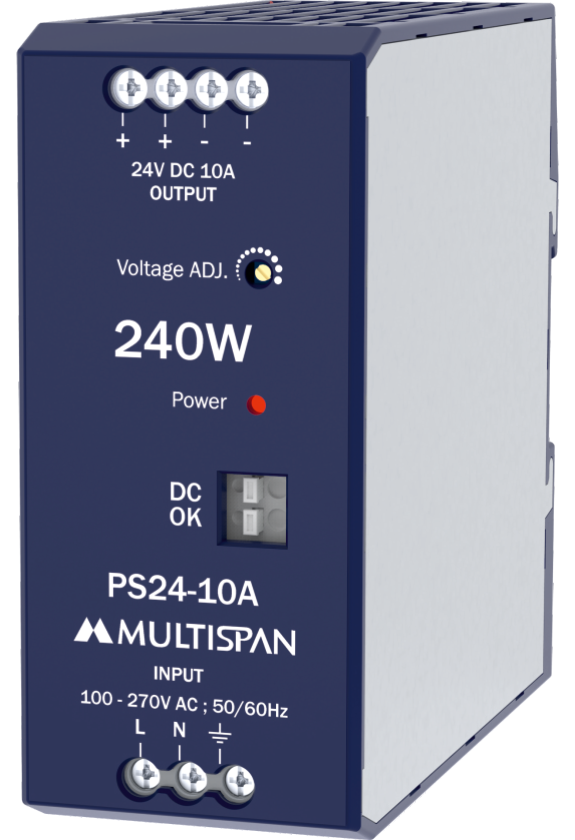

Multispan PS24-10A SMPS Power Supply (240W)
The Multispan PS24-10A is a 240W DIN-rail switch-mode power supply delivering 24V DC at 10 A with efficiency >93% @230 V AC and full hiccup-mode protection. 24–28 V DC output, DC-OK signal, polycarbonate — the flagship 240 W DIN-rail supply.
Also searched as PS24 10A, PS24-10A. Genuine Multispan PS24-10A — price, datasheet, supplier & distributor support across the UAE & GCC, with worldwide export.
- 240W · 24V DC / 10 A
- Efficiency >93% @230 V AC
- Wide 100–270 V AC input
- Hiccup overload & short-circuit protection
- Over-voltage & over-temperature protection
- 2.5 KV input/output isolation
Genuine MultispanCE certified
UAE & GCC delivery
Technical Specification
PS24-10A specifications
Model
| Model | PS24-10A |
|---|---|
| Rated Power | 240W |
| Output | 24V DC / 10 A |
| Size (HxWxD) | 125 x 55 x 135 mm |
| Weight | 625 gms |
| Mounting | DIN Rail |
Input
| Supply Voltage | 100 to 270V AC ±10% (L-N) |
|---|---|
| Frequency Range | 50 / 60 Hz |
| Efficiency (typ.) | >93% @230V AC |
| Start-up Time | <1 sec @230V AC |
Output
| Nominal Output | 24V DC, 10 A |
|---|---|
| Ripple & Noise (max) | <1% of V out |
| Line / Load Regulation | ±1% |
| Adjustment | Front voltage ADJ. trimmer |
Protection
| Overload | 110–140% rated — hiccup mode, auto-recover |
|---|---|
| Short Circuit | Hiccup mode, auto-recover |
| Over Voltage | Latch / auto per model |
| Over Temperature | Auto shutdown & recovery |
| Isolation | 2.5 KV input to output |
